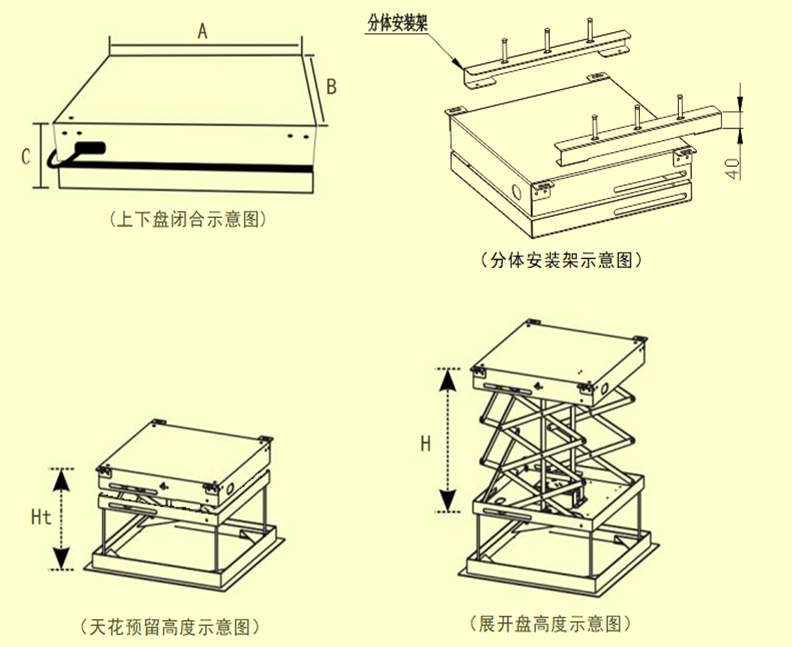

型號規格展開盤高行程凈重負重吊架盤包裝尺寸天花尺寸天花開孔尺寸天花開孔預留最小高度距離Ht
    （即樓板到裝飾天花的距離）		天花包裝尺寸
AxB(mm)C(mm)H(mm)L(mm)(kg)(kg)長x寬x高長x寬長x寬Ht = C+40+95+投影機高度(mm)
T80A450x4501458006551525575x535x265600x600550x550高度Ht =280+ 投影機高度630x630x100
T80B508x5081458006551525640x590x300600x600550x550高度Ht =280+ 投影機高度630x630x100
T100A450x45014510008551525575x535x265600x600550x550高度Ht =280+ 投影機高度630x630x100
T100B508x50814510008551525640x590x300600x600550x550高度Ht =280+ 投影機高度630x630x100
T120A450x4501701200103017.525575x535x265600x600550x550高度Ht =305+ 投影機高度630x630x100
T120B508x5081701200103017.525640x590x310600x600550x550高度Ht =305+ 投影機高度630x630x100
T150A450x450215150012851825575x535x265600x600550x550高度Ht =350+ 投影機高度630x630x100
T150B508x508215150012851825640x590x300600x600550x550高度Ht =350+ 投影機高度630x630x100
T180B508x508220180015801925640x590x300600x600550x550高度Ht =355+ 投影機高度630x630x100
S180700x508220180015802550780x640x380870x600820x550高度Ht =355+ 投影機高度895x640x100
S240700x508240240021602650780x640x380870x600820x550高度Ht =375+ 投影機高度895x640x100
S300700x5082803000272029.550780x640x380870x600820x550高度Ht =415+ 投影機高度895x640x100
S360700x508350360032803050780x640x460870x600820x550高度Ht =485+ 投影機高度895x640x100
